- Ayrton Rivale Profile-S
Article number:
64845

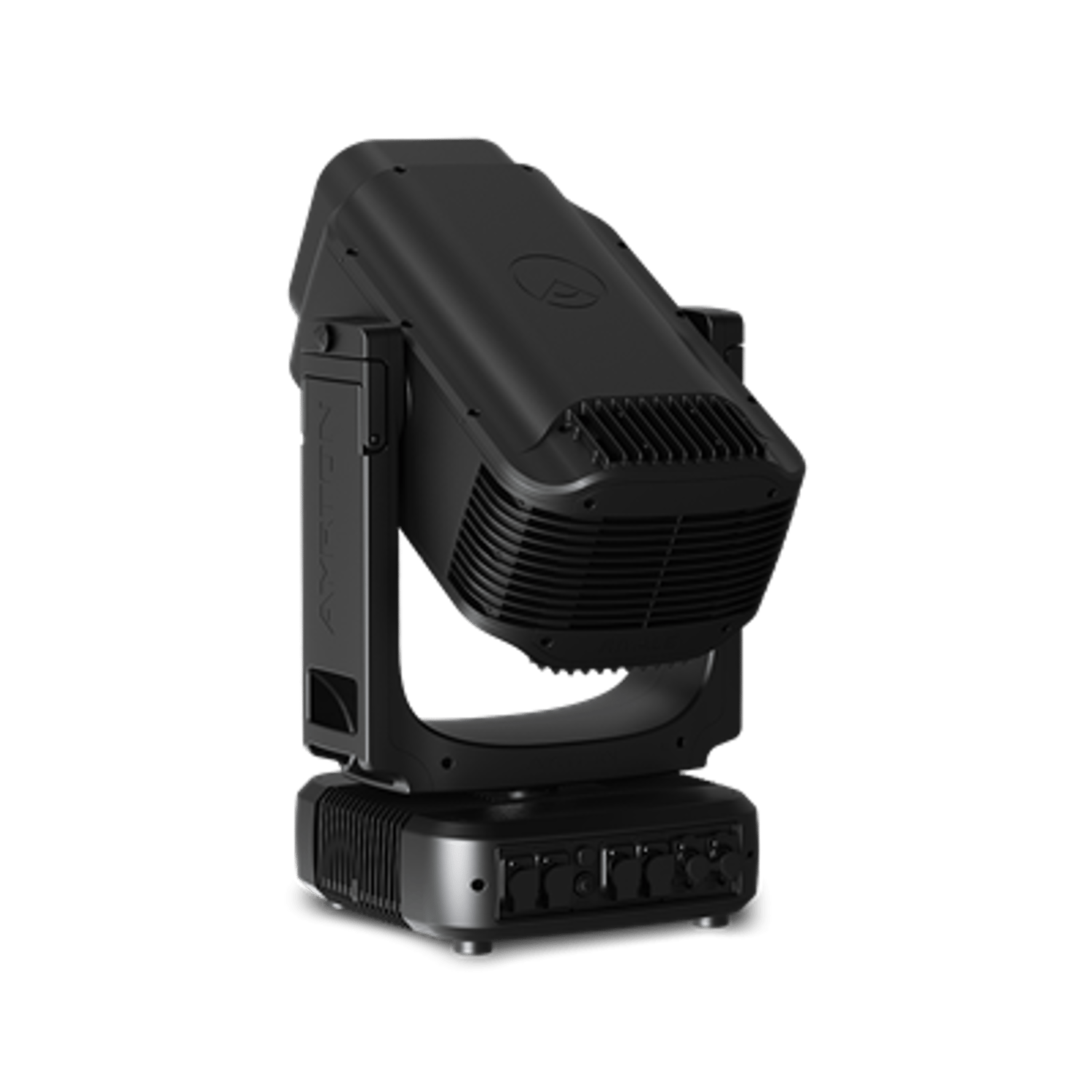

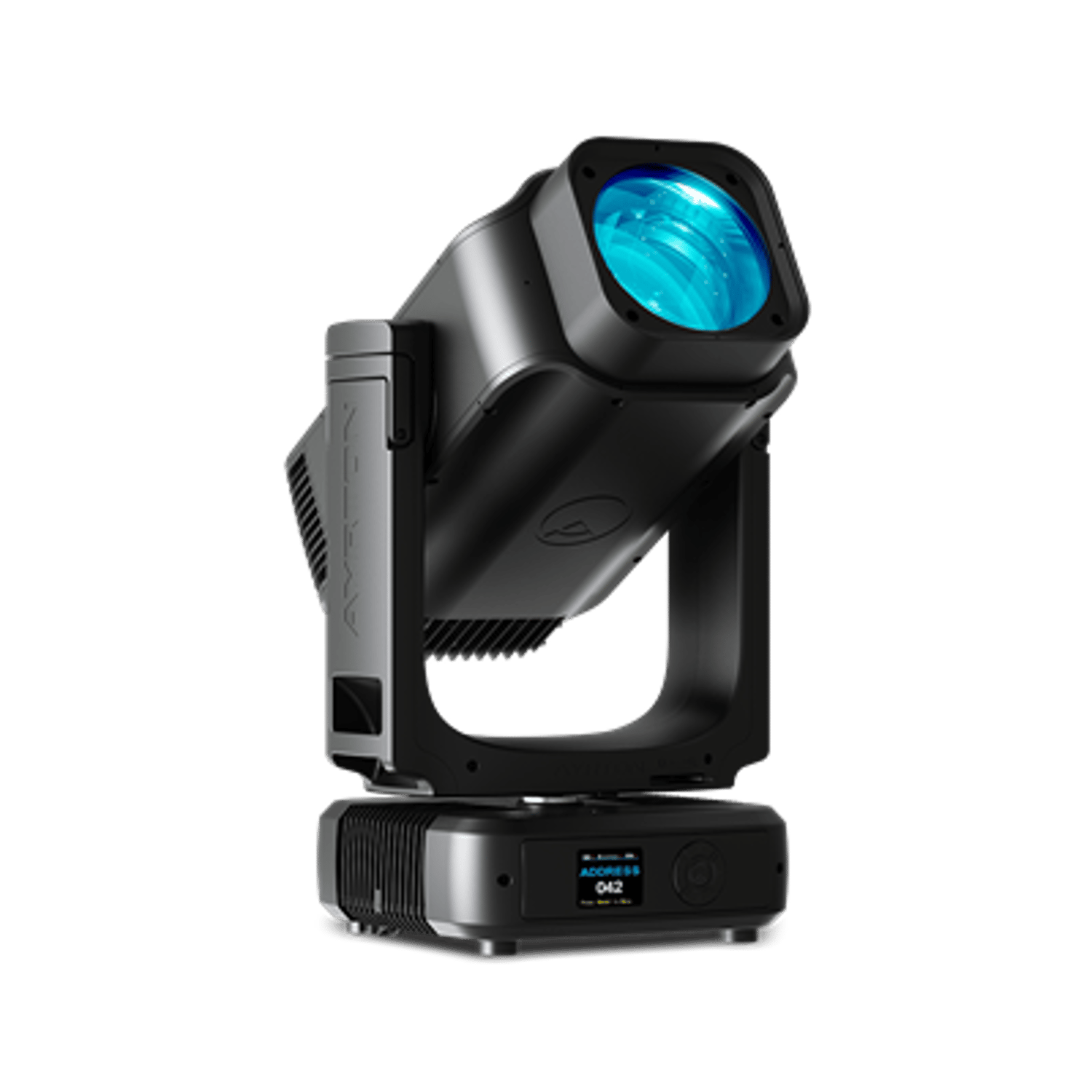

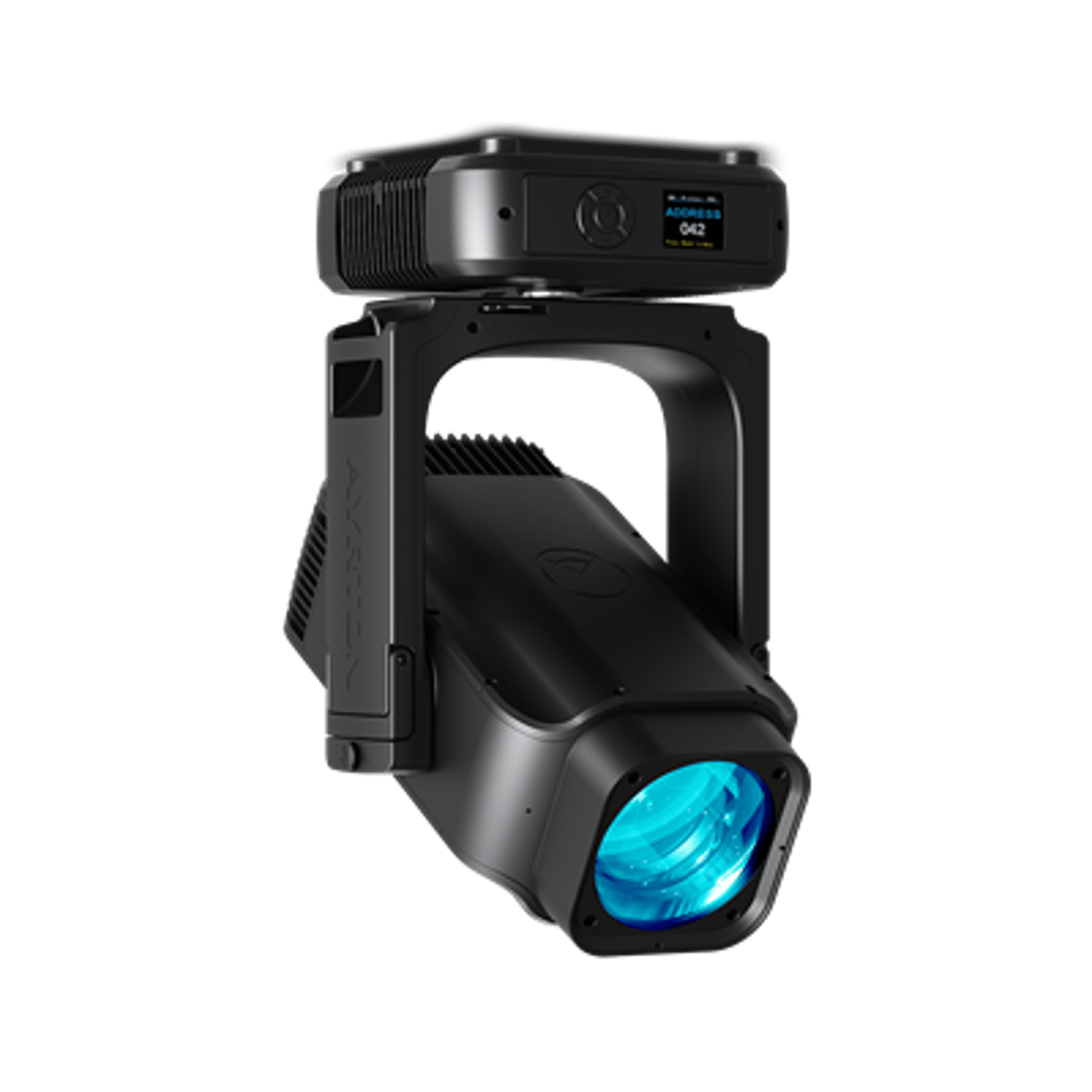

Ayrton Rivale Profile-S
Added to order on checkout
RIVALE PROFILE is the first ultra-equipped luminaire in AYRTON’s brand new “ULTIMATE“ series, all models being perfectly homothetic and sharing common features, delivering previously unimaginable weight to output ratios.
Developed for mixed use indoors and outdoors, and in all conditions, RIVALE PROFILE, with its unique visual signature, is unparalleled on the market. Weight determines performance, and RIVALE PROFILE weighs only 28 kg. It is capable of outstanding performance unprecedented for a product in this category. To allow you more creativity and freedom in your lighting design, RIVALE PROFILE has been provided with continuous rotation of the pan and tilt movement. RIVALE PROFILE is fitted with a brand new high-efficiency 450-watt sealed mono-block LED. module calibrated at 6500 K that offers a luminous flux of 30,000 lumens with optimal positioning on a black body to obtain perfect light neutrality. The proprietary optical system has 13 lenses, delivering a 13-to-1 zoom ratio and zoom range of 4 to 52°. Equipped with a 160 mm frontal lens, RIVALE PROFILE can produce an ultra-intensive beam of 4°, close to that of AYRTON’S famous “LT“ versions.
RIVALE PROFILE has adopted a brand-new high-definition progressive CMY color-mixing system that delivers perfect color reproduction as soon as the filter is inserted, regardless of the color combination selected.
An extended progressive CTO lets you fine tune the colour temperature from 2700 to 6500 K, and a seven-position colour wheel completes the palette of tools dedicated to creating colour. For greater flexibility of use, RIVALE PROFILE allows subtle adjustment of the colour rendering index from 70 to 86. The framing section permits accurate positioning of each shutter blade on a 100% surface area with a rotation of plus-or-minus 90°. A fast 15-blade iris diaphragm enables beam optimisation in Beam mode. The image section of RIVALE PROFILE includes 15 high-definition glass gobos on two wheels: one rotating wheel with seven positions and one fixed wheel with eight positions. The effect section is fitted with a monochromatic animation wheel, two combinable rotating prisms and two frost filters. RIVALE PROFILE, a unique projector that boasts performance, creativity, subtlety and power, is the most versatile fixture created by AYRTON to date. A truly innovative luminaire with no equivalent on the market.
Performance 3 Series - Source: 450 W - 6500 K Lumens: 30,000 Native CRI: greater than 70 Beam Aperture: 4° to 52° Frontal Lens: 160 mmSpecifications
OPTICS
13-element 13:1 zoom high-resolution optic system Beam aperture: 4° to 52° Fast motorised linear zoom Tempered anti-reflective coated lenses 160 mm frontal lensLIGHT SOURCE
35,000 lumens white light engine Total luminaire output: up to 30,000 lumens (integrating sphere measurement, Stage Fan mode) Colour temperature output: 6500 K CRI: greater than 70 Rated life (L70): up to 40,000 hours Flicker-free source management suitable for TV applications and all video-recorded eventsMOVEMENT
Extremely accurate positioning Moving-head operated via either 8- or 16-bit resolution High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement Pan and tilt automatic repositioning Moving-head range: infinite pan and tilt rotationCOLOURS
Sophisticated colour mixing system providing CMY color mixing Variable CTO colour temperature correction Variable CRI channel up to 86 Fixed colour wheel with seven complimentary coloursGOBOS
Indexable rotating gobo wheel with seven high precision glass gobos, plus open position Adjustable-speed rotating gobo in both directions Fixed gobo wheel with 9 high-precision glass gobos, plus open position Gobo diameter: 25.5 mm Image diameter: 18.0 mm Gobo thickness: 1.1 mmFRAMING SYSTEM
4 individually positionable shutter blades on a 100% surface area in all positions Rotation of the shutter blades module: +/- 90°IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effects Iris range: 15% to 100% openFROST
2 frost filters one light, one heavy Focusable graphic animation effect-wheel with continuous rotation in both directions 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linearEFFECTS
DIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation Strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller Information menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function 5 menu buttons to set the functions Excess temperature protection Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™ IP65 XLR 5 pin male and female connectors for DMX connection IP65 RJ45 IN / OUT connectors for ArtNet connection IP65 PowerCON TRUE1 male and female connectors for power connectionCONTROL
DMX 512 protocol, through IP65 DMX cable or a wireless system DMX-RDM compatible Stand-alone mode and Master/Slave modes ArtNet™ & sACN protocol through Ethernet cable Local control panel, with IP65 LCD display 65 DMX channels footprintPOWER SUPPLY
Electronic supply with active PFC 100 to 240 Volts – 50/60Hz Power: 700 W maximumCOOLING SYSTEM
Advanced liquid cooling system IP68 self-adjusting variable speed fans for quiet operation (Auto mode) Selectable ventilation user modes with a new Super Silent Mode Safety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal plates Base in die-cast composite alloy Heatsinks in aluminium and copper Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Four-side handles for transportation Four heavy-duty feet for better stability IP65 protection rating Exterior finish: black (Carbon)INSTALLATION
Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire Safety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45° C (113° F) Minimum permitted ambient temperature (Ta min): -20° C (-4° F) Minimum usage distance: 2.0 m (6.56 ft)COMPLIANCE
EU (EMC & LVD): EMC Directive 2014/30/EU LVD Directive 2014/35/EUUS (Safety & EMC) UL 1573 FCC Part 15, Subpart B:2018SIZE
Product: 360 x 675.5 x 315 mm (l x h x d) Flight-case foam: 485 x 560 x 565 mm (l x h x d)WEIGHT
Product: 28 kgPRODUCT CODES
012321: RIVALE PROFILE – CLASSICAL IP65 3 SERIES
***Check our DOWNLOADS section below for more info.***
Read more
Developed for mixed use indoors and outdoors, and in all conditions, RIVALE PROFILE, with its unique visual signature, is unparalleled on the market. Weight determines performance, and RIVALE PROFILE weighs only 28 kg. It is capable of outstanding performance unprecedented for a product in this category. To allow you more creativity and freedom in your lighting design, RIVALE PROFILE has been provided with continuous rotation of the pan and tilt movement. RIVALE PROFILE is fitted with a brand new high-efficiency 450-watt sealed mono-block LED. module calibrated at 6500 K that offers a luminous flux of 30,000 lumens with optimal positioning on a black body to obtain perfect light neutrality. The proprietary optical system has 13 lenses, delivering a 13-to-1 zoom ratio and zoom range of 4 to 52°. Equipped with a 160 mm frontal lens, RIVALE PROFILE can produce an ultra-intensive beam of 4°, close to that of AYRTON’S famous “LT“ versions.
RIVALE PROFILE has adopted a brand-new high-definition progressive CMY color-mixing system that delivers perfect color reproduction as soon as the filter is inserted, regardless of the color combination selected.
An extended progressive CTO lets you fine tune the colour temperature from 2700 to 6500 K, and a seven-position colour wheel completes the palette of tools dedicated to creating colour. For greater flexibility of use, RIVALE PROFILE allows subtle adjustment of the colour rendering index from 70 to 86. The framing section permits accurate positioning of each shutter blade on a 100% surface area with a rotation of plus-or-minus 90°. A fast 15-blade iris diaphragm enables beam optimisation in Beam mode. The image section of RIVALE PROFILE includes 15 high-definition glass gobos on two wheels: one rotating wheel with seven positions and one fixed wheel with eight positions. The effect section is fitted with a monochromatic animation wheel, two combinable rotating prisms and two frost filters. RIVALE PROFILE, a unique projector that boasts performance, creativity, subtlety and power, is the most versatile fixture created by AYRTON to date. A truly innovative luminaire with no equivalent on the market.
Performance 3 Series - Source: 450 W - 6500 K Lumens: 30,000 Native CRI: greater than 70 Beam Aperture: 4° to 52° Frontal Lens: 160 mmSpecifications
OPTICS
13-element 13:1 zoom high-resolution optic system Beam aperture: 4° to 52° Fast motorised linear zoom Tempered anti-reflective coated lenses 160 mm frontal lensLIGHT SOURCE
35,000 lumens white light engine Total luminaire output: up to 30,000 lumens (integrating sphere measurement, Stage Fan mode) Colour temperature output: 6500 K CRI: greater than 70 Rated life (L70): up to 40,000 hours Flicker-free source management suitable for TV applications and all video-recorded eventsMOVEMENT
Extremely accurate positioning Moving-head operated via either 8- or 16-bit resolution High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement Pan and tilt automatic repositioning Moving-head range: infinite pan and tilt rotationCOLOURS
Sophisticated colour mixing system providing CMY color mixing Variable CTO colour temperature correction Variable CRI channel up to 86 Fixed colour wheel with seven complimentary coloursGOBOS
Indexable rotating gobo wheel with seven high precision glass gobos, plus open position Adjustable-speed rotating gobo in both directions Fixed gobo wheel with 9 high-precision glass gobos, plus open position Gobo diameter: 25.5 mm Image diameter: 18.0 mm Gobo thickness: 1.1 mmFRAMING SYSTEM
4 individually positionable shutter blades on a 100% surface area in all positions Rotation of the shutter blades module: +/- 90°IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effects Iris range: 15% to 100% openFROST
2 frost filters one light, one heavy Focusable graphic animation effect-wheel with continuous rotation in both directions 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linearEFFECTS
DIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation Strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller Information menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function 5 menu buttons to set the functions Excess temperature protection Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™ IP65 XLR 5 pin male and female connectors for DMX connection IP65 RJ45 IN / OUT connectors for ArtNet connection IP65 PowerCON TRUE1 male and female connectors for power connectionCONTROL
DMX 512 protocol, through IP65 DMX cable or a wireless system DMX-RDM compatible Stand-alone mode and Master/Slave modes ArtNet™ & sACN protocol through Ethernet cable Local control panel, with IP65 LCD display 65 DMX channels footprintPOWER SUPPLY
Electronic supply with active PFC 100 to 240 Volts – 50/60Hz Power: 700 W maximumCOOLING SYSTEM
Advanced liquid cooling system IP68 self-adjusting variable speed fans for quiet operation (Auto mode) Selectable ventilation user modes with a new Super Silent Mode Safety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal plates Base in die-cast composite alloy Heatsinks in aluminium and copper Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Four-side handles for transportation Four heavy-duty feet for better stability IP65 protection rating Exterior finish: black (Carbon)INSTALLATION
Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire Safety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45° C (113° F) Minimum permitted ambient temperature (Ta min): -20° C (-4° F) Minimum usage distance: 2.0 m (6.56 ft)COMPLIANCE
EU (EMC & LVD): EMC Directive 2014/30/EU LVD Directive 2014/35/EUUS (Safety & EMC) UL 1573 FCC Part 15, Subpart B:2018SIZE
Product: 360 x 675.5 x 315 mm (l x h x d) Flight-case foam: 485 x 560 x 565 mm (l x h x d)WEIGHT
Product: 28 kgPRODUCT CODES
012321: RIVALE PROFILE – CLASSICAL IP65 3 SERIES
***Check our DOWNLOADS section below for more info.***
Read more
RIVALE PROFILE is the first ultra-equipped luminaire in AYRTON’s brand new “ULTIMATE“ series, all models being perfectly homothetic and sharing common features, delivering previously unimaginable weight to output ratios.
Developed for mixed use indoors and outdoors, and in all conditions, RIVALE PROFILE, with its unique visual signature, is unparalleled on the market. Weight determines performance, and RIVALE PROFILE weighs only 28 kg. It is capable of outstanding performance unprecedented for a product in this category. To allow you more creativity and freedom in your lighting design, RIVALE PROFILE has been provided with continuous rotation of the pan and tilt movement. RIVALE PROFILE is fitted with a brand new high-efficiency 450-watt sealed mono-block LED. module calibrated at 6500 K that offers a luminous flux of 30,000 lumens with optimal positioning on a black body to obtain perfect light neutrality. The proprietary optical system has 13 lenses, delivering a 13-to-1 zoom ratio and zoom range of 4 to 52°. Equipped with a 160 mm frontal lens, RIVALE PROFILE can produce an ultra-intensive beam of 4°, close to that of AYRTON’S famous “LT“ versions.
RIVALE PROFILE has adopted a brand-new high-definition progressive CMY color-mixing system that delivers perfect color reproduction as soon as the filter is inserted, regardless of the color combination selected.
An extended progressive CTO lets you fine tune the colour temperature from 2700 to 6500 K, and a seven-position colour wheel completes the palette of tools dedicated to creating colour. For greater flexibility of use, RIVALE PROFILE allows subtle adjustment of the colour rendering index from 70 to 86. The framing section permits accurate positioning of each shutter blade on a 100% surface area with a rotation of plus-or-minus 90°. A fast 15-blade iris diaphragm enables beam optimisation in Beam mode. The image section of RIVALE PROFILE includes 15 high-definition glass gobos on two wheels: one rotating wheel with seven positions and one fixed wheel with eight positions. The effect section is fitted with a monochromatic animation wheel, two combinable rotating prisms and two frost filters. RIVALE PROFILE, a unique projector that boasts performance, creativity, subtlety and power, is the most versatile fixture created by AYRTON to date. A truly innovative luminaire with no equivalent on the market.
Performance 3 Series - Source: 450 W - 6500 K Lumens: 30,000 Native CRI: greater than 70 Beam Aperture: 4° to 52° Frontal Lens: 160 mmSpecifications
OPTICS
13-element 13:1 zoom high-resolution optic system Beam aperture: 4° to 52° Fast motorised linear zoom Tempered anti-reflective coated lenses 160 mm frontal lensLIGHT SOURCE
35,000 lumens white light engine Total luminaire output: up to 30,000 lumens (integrating sphere measurement, Stage Fan mode) Colour temperature output: 6500 K CRI: greater than 70 Rated life (L70): up to 40,000 hours Flicker-free source management suitable for TV applications and all video-recorded eventsMOVEMENT
Extremely accurate positioning Moving-head operated via either 8- or 16-bit resolution High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement Pan and tilt automatic repositioning Moving-head range: infinite pan and tilt rotationCOLOURS
Sophisticated colour mixing system providing CMY color mixing Variable CTO colour temperature correction Variable CRI channel up to 86 Fixed colour wheel with seven complimentary coloursGOBOS
Indexable rotating gobo wheel with seven high precision glass gobos, plus open position Adjustable-speed rotating gobo in both directions Fixed gobo wheel with 9 high-precision glass gobos, plus open position Gobo diameter: 25.5 mm Image diameter: 18.0 mm Gobo thickness: 1.1 mmFRAMING SYSTEM
4 individually positionable shutter blades on a 100% surface area in all positions Rotation of the shutter blades module: +/- 90°IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effects Iris range: 15% to 100% openFROST
2 frost filters one light, one heavy Focusable graphic animation effect-wheel with continuous rotation in both directions 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linearEFFECTS
DIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation Strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller Information menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function 5 menu buttons to set the functions Excess temperature protection Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™ IP65 XLR 5 pin male and female connectors for DMX connection IP65 RJ45 IN / OUT connectors for ArtNet connection IP65 PowerCON TRUE1 male and female connectors for power connectionCONTROL
DMX 512 protocol, through IP65 DMX cable or a wireless system DMX-RDM compatible Stand-alone mode and Master/Slave modes ArtNet™ & sACN protocol through Ethernet cable Local control panel, with IP65 LCD display 65 DMX channels footprintPOWER SUPPLY
Electronic supply with active PFC 100 to 240 Volts – 50/60Hz Power: 700 W maximumCOOLING SYSTEM
Advanced liquid cooling system IP68 self-adjusting variable speed fans for quiet operation (Auto mode) Selectable ventilation user modes with a new Super Silent Mode Safety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal plates Base in die-cast composite alloy Heatsinks in aluminium and copper Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Four-side handles for transportation Four heavy-duty feet for better stability IP65 protection rating Exterior finish: black (Carbon)INSTALLATION
Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire Safety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45° C (113° F) Minimum permitted ambient temperature (Ta min): -20° C (-4° F) Minimum usage distance: 2.0 m (6.56 ft)COMPLIANCE
EU (EMC & LVD): EMC Directive 2014/30/EU LVD Directive 2014/35/EUUS (Safety & EMC) UL 1573 FCC Part 15, Subpart B:2018SIZE
Product: 360 x 675.5 x 315 mm (l x h x d) Flight-case foam: 485 x 560 x 565 mm (l x h x d)WEIGHT
Product: 28 kgPRODUCT CODES
012321: RIVALE PROFILE – CLASSICAL IP65 3 SERIES
***Check our DOWNLOADS section below for more info.***
Read more
Developed for mixed use indoors and outdoors, and in all conditions, RIVALE PROFILE, with its unique visual signature, is unparalleled on the market. Weight determines performance, and RIVALE PROFILE weighs only 28 kg. It is capable of outstanding performance unprecedented for a product in this category. To allow you more creativity and freedom in your lighting design, RIVALE PROFILE has been provided with continuous rotation of the pan and tilt movement. RIVALE PROFILE is fitted with a brand new high-efficiency 450-watt sealed mono-block LED. module calibrated at 6500 K that offers a luminous flux of 30,000 lumens with optimal positioning on a black body to obtain perfect light neutrality. The proprietary optical system has 13 lenses, delivering a 13-to-1 zoom ratio and zoom range of 4 to 52°. Equipped with a 160 mm frontal lens, RIVALE PROFILE can produce an ultra-intensive beam of 4°, close to that of AYRTON’S famous “LT“ versions.
RIVALE PROFILE has adopted a brand-new high-definition progressive CMY color-mixing system that delivers perfect color reproduction as soon as the filter is inserted, regardless of the color combination selected.
An extended progressive CTO lets you fine tune the colour temperature from 2700 to 6500 K, and a seven-position colour wheel completes the palette of tools dedicated to creating colour. For greater flexibility of use, RIVALE PROFILE allows subtle adjustment of the colour rendering index from 70 to 86. The framing section permits accurate positioning of each shutter blade on a 100% surface area with a rotation of plus-or-minus 90°. A fast 15-blade iris diaphragm enables beam optimisation in Beam mode. The image section of RIVALE PROFILE includes 15 high-definition glass gobos on two wheels: one rotating wheel with seven positions and one fixed wheel with eight positions. The effect section is fitted with a monochromatic animation wheel, two combinable rotating prisms and two frost filters. RIVALE PROFILE, a unique projector that boasts performance, creativity, subtlety and power, is the most versatile fixture created by AYRTON to date. A truly innovative luminaire with no equivalent on the market.
Performance 3 Series - Source: 450 W - 6500 K Lumens: 30,000 Native CRI: greater than 70 Beam Aperture: 4° to 52° Frontal Lens: 160 mmSpecifications
OPTICS
13-element 13:1 zoom high-resolution optic system Beam aperture: 4° to 52° Fast motorised linear zoom Tempered anti-reflective coated lenses 160 mm frontal lensLIGHT SOURCE
35,000 lumens white light engine Total luminaire output: up to 30,000 lumens (integrating sphere measurement, Stage Fan mode) Colour temperature output: 6500 K CRI: greater than 70 Rated life (L70): up to 40,000 hours Flicker-free source management suitable for TV applications and all video-recorded eventsMOVEMENT
Extremely accurate positioning Moving-head operated via either 8- or 16-bit resolution High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement Pan and tilt automatic repositioning Moving-head range: infinite pan and tilt rotationCOLOURS
Sophisticated colour mixing system providing CMY color mixing Variable CTO colour temperature correction Variable CRI channel up to 86 Fixed colour wheel with seven complimentary coloursGOBOS
Indexable rotating gobo wheel with seven high precision glass gobos, plus open position Adjustable-speed rotating gobo in both directions Fixed gobo wheel with 9 high-precision glass gobos, plus open position Gobo diameter: 25.5 mm Image diameter: 18.0 mm Gobo thickness: 1.1 mmFRAMING SYSTEM
4 individually positionable shutter blades on a 100% surface area in all positions Rotation of the shutter blades module: +/- 90°IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effects Iris range: 15% to 100% openFROST
2 frost filters one light, one heavy Focusable graphic animation effect-wheel with continuous rotation in both directions 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linearEFFECTS
DIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation Strobe effect, with speed adjustment from 1 to 25 flashes per secondSOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller Information menu including hour counter, temperature, software versionHARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function 5 menu buttons to set the functions Excess temperature protection Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™ IP65 XLR 5 pin male and female connectors for DMX connection IP65 RJ45 IN / OUT connectors for ArtNet connection IP65 PowerCON TRUE1 male and female connectors for power connectionCONTROL
DMX 512 protocol, through IP65 DMX cable or a wireless system DMX-RDM compatible Stand-alone mode and Master/Slave modes ArtNet™ & sACN protocol through Ethernet cable Local control panel, with IP65 LCD display 65 DMX channels footprintPOWER SUPPLY
Electronic supply with active PFC 100 to 240 Volts – 50/60Hz Power: 700 W maximumCOOLING SYSTEM
Advanced liquid cooling system IP68 self-adjusting variable speed fans for quiet operation (Auto mode) Selectable ventilation user modes with a new Super Silent Mode Safety protection against temperatures excessesHOUSING
Moving-head skeleton made of aluminium and steel metal plates Base in die-cast composite alloy Heatsinks in aluminium and copper Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Four-side handles for transportation Four heavy-duty feet for better stability IP65 protection rating Exterior finish: black (Carbon)INSTALLATION
Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire Safety cable attachment pointOPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45° C (113° F) Minimum permitted ambient temperature (Ta min): -20° C (-4° F) Minimum usage distance: 2.0 m (6.56 ft)COMPLIANCE
EU (EMC & LVD): EMC Directive 2014/30/EU LVD Directive 2014/35/EUUS (Safety & EMC) UL 1573 FCC Part 15, Subpart B:2018SIZE
Product: 360 x 675.5 x 315 mm (l x h x d) Flight-case foam: 485 x 560 x 565 mm (l x h x d)WEIGHT
Product: 28 kgPRODUCT CODES
012321: RIVALE PROFILE – CLASSICAL IP65 3 SERIES
***Check our DOWNLOADS section below for more info.***
Read more
Specifications
| Compatible with (optional) wireless DMX | No |
| Fixture type | Wash lights |
| Outdoor usage | No |
| Lumens | 30000 |
| Application | Touring |
| Colors | CMY, CTO |
| Source | LED |
| Brand | Ayrton |
