- e:cue Genius 8CH
Article number:
65705

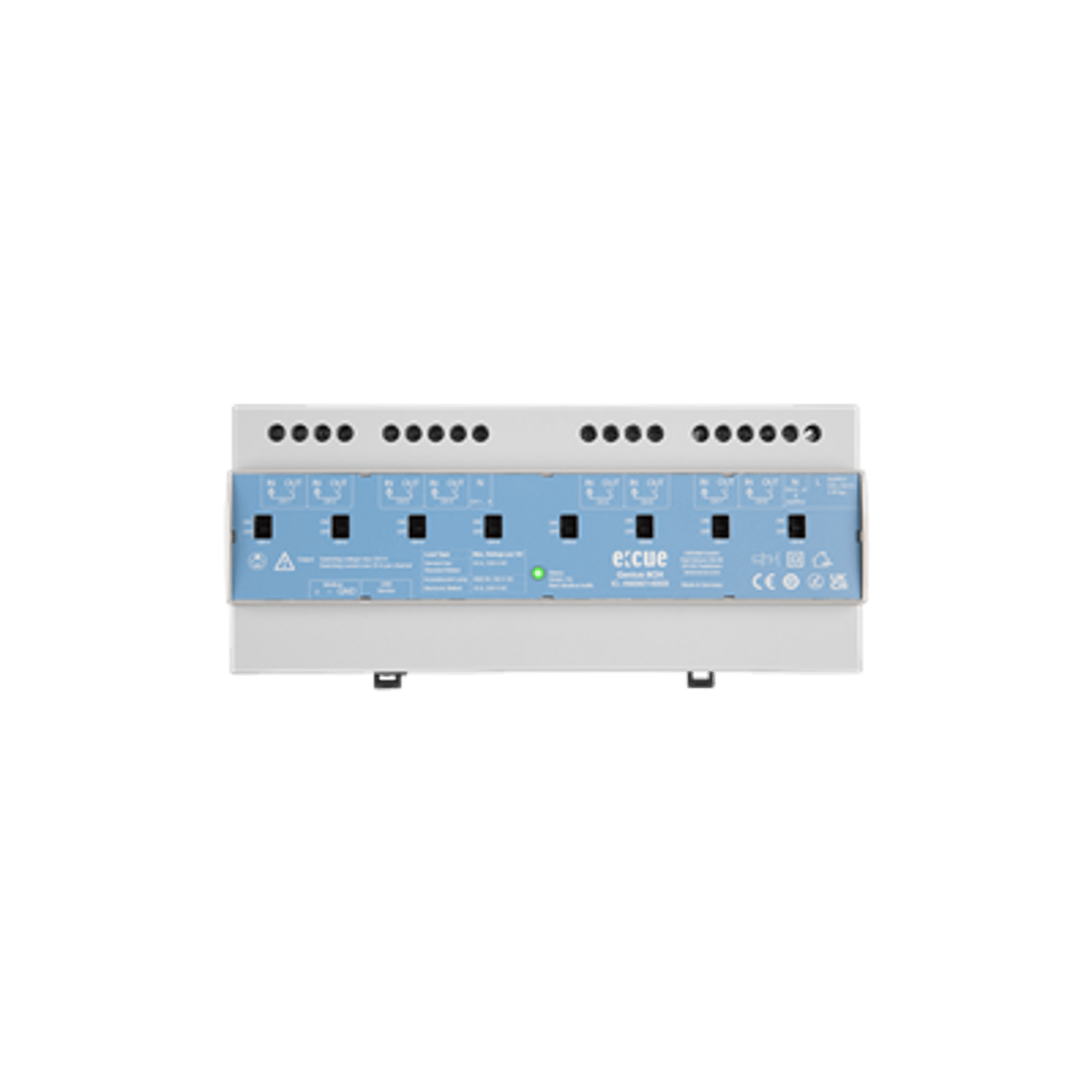

e:cue Genius 8CH
Multifunctional solution for load switching, energy monitoring and power measuring combined in a single device.
The Genius is a relay controller and energy meter that combines measuring and switching load in a single device. Communication with any third party system is made via the Modbus RTU / ASCII protocol at a RS-485 interface. The Genius 4CH provides four bistable relay interfaces in single-pole, single-throw configuration, accompanied by manual switches for service overrides. The Genius 8CH offers eight of them. It is a modular basic solution for controlling lighting installations. The Genius is easily mounted on standard 35 mm DIN rails, or with a key hole in the housing base on walls or on any stable vertical surface. The Node is AC line powered.
Highlights:
Real-time monitoring: Critical installations/objectsChannels: Available with 4 and 8 channelsRelay Outputs: Four or eight bistable relay outputs SPST each for up to 20 A resistive load @ 230 V ACMeasured Data: Voltage, current, power (active, apparent, reactive), power factor, energy (active), phase, line frequency, statusConnectivity: Modbus RTU / ASCIIMounting: Flexible mounting on 35 mm DIN rails or surfaces
Genius 8CH Specifications:
Dimensions (W x H x D): 213 x 90.5 x 62 mm / 8.4 x 3.6 x 2.4 in (excl. fastening clip)Weight: 600 g / 1.32 lbPower Input: 200-240V ±10% 50/60Hz ACPower Consumption: < 4 WOperating Temperature: 0 … 50 °C / 14 … 122 °F (for > 40 °C, only use max. 4 channels up to 20 A load)Storage Temperature: 0 … 70 °C / 14 … 158 °FOperating/Storage Humidity: 0 … 80% RH, non-condensingOvervoltage Category: IIInstallation Conditions: IP20, not designed for outdoor use, Intra-building connections onlyPollution Degree: IIIEC Protection Class: Class IIHousing: Self-extinguishing blend PC/ABS, UL document E140692Mounting: On 35 mm DIN rail (EN 60715) or with keyhole on any stable vertical surfaceCertificates: CE, UKCA, RoHSRelay Outputs:8 x SPST feed-through latching relay with manual overrideNominal voltage per channel: 115 … 230 V ACContact rating: 20 A, 230 V AC resistive load (1 x 10^5 cycles)4600 W, 230 V AC incandescent lamp (3 x 10^4 cycles)16 A, 230 V AC electronic ballast (6 x 10^3 cycles)Inrush current: 500 A peak / 2 msMax operate frequency per channel: 10 ops. / minMeasured Data: Voltage, current, power (active, apparent, reactive), power factor, energy (active), phase, line frequency, statusMeasurement Tolerance: ± 3%Serial Port: Modbus RTU / ASCII (RS-485), 3-pin pluggable connectorUSB Port: 1 x Mini-USB, Type BUser Interface: Combined LED for data activity and device statusRead more
The Genius is a relay controller and energy meter that combines measuring and switching load in a single device. Communication with any third party system is made via the Modbus RTU / ASCII protocol at a RS-485 interface. The Genius 4CH provides four bistable relay interfaces in single-pole, single-throw configuration, accompanied by manual switches for service overrides. The Genius 8CH offers eight of them. It is a modular basic solution for controlling lighting installations. The Genius is easily mounted on standard 35 mm DIN rails, or with a key hole in the housing base on walls or on any stable vertical surface. The Node is AC line powered.
Highlights:
Real-time monitoring: Critical installations/objectsChannels: Available with 4 and 8 channelsRelay Outputs: Four or eight bistable relay outputs SPST each for up to 20 A resistive load @ 230 V ACMeasured Data: Voltage, current, power (active, apparent, reactive), power factor, energy (active), phase, line frequency, statusConnectivity: Modbus RTU / ASCIIMounting: Flexible mounting on 35 mm DIN rails or surfaces
Genius 8CH Specifications:
Dimensions (W x H x D): 213 x 90.5 x 62 mm / 8.4 x 3.6 x 2.4 in (excl. fastening clip)Weight: 600 g / 1.32 lbPower Input: 200-240V ±10% 50/60Hz ACPower Consumption: < 4 WOperating Temperature: 0 … 50 °C / 14 … 122 °F (for > 40 °C, only use max. 4 channels up to 20 A load)Storage Temperature: 0 … 70 °C / 14 … 158 °FOperating/Storage Humidity: 0 … 80% RH, non-condensingOvervoltage Category: IIInstallation Conditions: IP20, not designed for outdoor use, Intra-building connections onlyPollution Degree: IIIEC Protection Class: Class IIHousing: Self-extinguishing blend PC/ABS, UL document E140692Mounting: On 35 mm DIN rail (EN 60715) or with keyhole on any stable vertical surfaceCertificates: CE, UKCA, RoHSRelay Outputs:8 x SPST feed-through latching relay with manual overrideNominal voltage per channel: 115 … 230 V ACContact rating: 20 A, 230 V AC resistive load (1 x 10^5 cycles)4600 W, 230 V AC incandescent lamp (3 x 10^4 cycles)16 A, 230 V AC electronic ballast (6 x 10^3 cycles)Inrush current: 500 A peak / 2 msMax operate frequency per channel: 10 ops. / minMeasured Data: Voltage, current, power (active, apparent, reactive), power factor, energy (active), phase, line frequency, statusMeasurement Tolerance: ± 3%Serial Port: Modbus RTU / ASCII (RS-485), 3-pin pluggable connectorUSB Port: 1 x Mini-USB, Type BUser Interface: Combined LED for data activity and device statusRead more
Multifunctional solution for load switching, energy monitoring and power measuring combined in a single device.
The Genius is a relay controller and energy meter that combines measuring and switching load in a single device. Communication with any third party system is made via the Modbus RTU / ASCII protocol at a RS-485 interface. The Genius 4CH provides four bistable relay interfaces in single-pole, single-throw configuration, accompanied by manual switches for service overrides. The Genius 8CH offers eight of them. It is a modular basic solution for controlling lighting installations. The Genius is easily mounted on standard 35 mm DIN rails, or with a key hole in the housing base on walls or on any stable vertical surface. The Node is AC line powered.
Highlights:
Real-time monitoring: Critical installations/objectsChannels: Available with 4 and 8 channelsRelay Outputs: Four or eight bistable relay outputs SPST each for up to 20 A resistive load @ 230 V ACMeasured Data: Voltage, current, power (active, apparent, reactive), power factor, energy (active), phase, line frequency, statusConnectivity: Modbus RTU / ASCIIMounting: Flexible mounting on 35 mm DIN rails or surfaces
Genius 8CH Specifications:
Dimensions (W x H x D): 213 x 90.5 x 62 mm / 8.4 x 3.6 x 2.4 in (excl. fastening clip)Weight: 600 g / 1.32 lbPower Input: 200-240V ±10% 50/60Hz ACPower Consumption: < 4 WOperating Temperature: 0 … 50 °C / 14 … 122 °F (for > 40 °C, only use max. 4 channels up to 20 A load)Storage Temperature: 0 … 70 °C / 14 … 158 °FOperating/Storage Humidity: 0 … 80% RH, non-condensingOvervoltage Category: IIInstallation Conditions: IP20, not designed for outdoor use, Intra-building connections onlyPollution Degree: IIIEC Protection Class: Class IIHousing: Self-extinguishing blend PC/ABS, UL document E140692Mounting: On 35 mm DIN rail (EN 60715) or with keyhole on any stable vertical surfaceCertificates: CE, UKCA, RoHSRelay Outputs:8 x SPST feed-through latching relay with manual overrideNominal voltage per channel: 115 … 230 V ACContact rating: 20 A, 230 V AC resistive load (1 x 10^5 cycles)4600 W, 230 V AC incandescent lamp (3 x 10^4 cycles)16 A, 230 V AC electronic ballast (6 x 10^3 cycles)Inrush current: 500 A peak / 2 msMax operate frequency per channel: 10 ops. / minMeasured Data: Voltage, current, power (active, apparent, reactive), power factor, energy (active), phase, line frequency, statusMeasurement Tolerance: ± 3%Serial Port: Modbus RTU / ASCII (RS-485), 3-pin pluggable connectorUSB Port: 1 x Mini-USB, Type BUser Interface: Combined LED for data activity and device statusRead more
The Genius is a relay controller and energy meter that combines measuring and switching load in a single device. Communication with any third party system is made via the Modbus RTU / ASCII protocol at a RS-485 interface. The Genius 4CH provides four bistable relay interfaces in single-pole, single-throw configuration, accompanied by manual switches for service overrides. The Genius 8CH offers eight of them. It is a modular basic solution for controlling lighting installations. The Genius is easily mounted on standard 35 mm DIN rails, or with a key hole in the housing base on walls or on any stable vertical surface. The Node is AC line powered.
Highlights:
Real-time monitoring: Critical installations/objectsChannels: Available with 4 and 8 channelsRelay Outputs: Four or eight bistable relay outputs SPST each for up to 20 A resistive load @ 230 V ACMeasured Data: Voltage, current, power (active, apparent, reactive), power factor, energy (active), phase, line frequency, statusConnectivity: Modbus RTU / ASCIIMounting: Flexible mounting on 35 mm DIN rails or surfaces
Genius 8CH Specifications:
Dimensions (W x H x D): 213 x 90.5 x 62 mm / 8.4 x 3.6 x 2.4 in (excl. fastening clip)Weight: 600 g / 1.32 lbPower Input: 200-240V ±10% 50/60Hz ACPower Consumption: < 4 WOperating Temperature: 0 … 50 °C / 14 … 122 °F (for > 40 °C, only use max. 4 channels up to 20 A load)Storage Temperature: 0 … 70 °C / 14 … 158 °FOperating/Storage Humidity: 0 … 80% RH, non-condensingOvervoltage Category: IIInstallation Conditions: IP20, not designed for outdoor use, Intra-building connections onlyPollution Degree: IIIEC Protection Class: Class IIHousing: Self-extinguishing blend PC/ABS, UL document E140692Mounting: On 35 mm DIN rail (EN 60715) or with keyhole on any stable vertical surfaceCertificates: CE, UKCA, RoHSRelay Outputs:8 x SPST feed-through latching relay with manual overrideNominal voltage per channel: 115 … 230 V ACContact rating: 20 A, 230 V AC resistive load (1 x 10^5 cycles)4600 W, 230 V AC incandescent lamp (3 x 10^4 cycles)16 A, 230 V AC electronic ballast (6 x 10^3 cycles)Inrush current: 500 A peak / 2 msMax operate frequency per channel: 10 ops. / minMeasured Data: Voltage, current, power (active, apparent, reactive), power factor, energy (active), phase, line frequency, statusMeasurement Tolerance: ± 3%Serial Port: Modbus RTU / ASCII (RS-485), 3-pin pluggable connectorUSB Port: 1 x Mini-USB, Type BUser Interface: Combined LED for data activity and device statusRead more
Specifications
| Type | Controllers & Processors |
| Brand | E:CUE |
