Article number:
41106

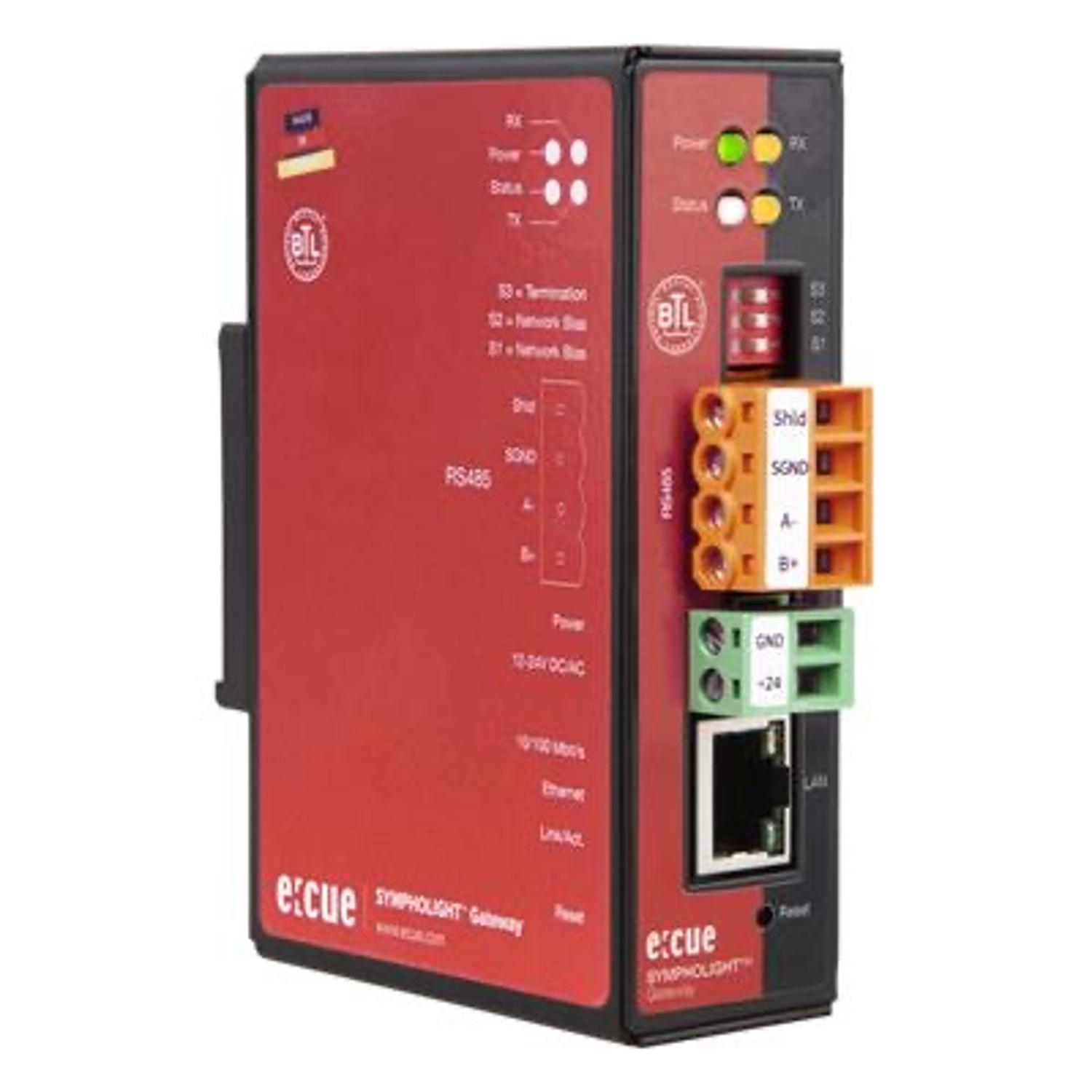

e:cue Sympholight
The SYMPHOLIGHT Gateway is an MQTT to BACnet interface. It converts data from the lighting management system SYMPHOLIGHT into the building management system compliant format. Forward e.g. movement and brightness information and to process it smartly in the building management system.With the integrated web interface, you can configure the SYMPHOLIGHT Gateway using a web browser, save the configuration and call up statistics and documentation. That makes configuring the devices significantly easier, allowing them to be commissioned more quickly.
Specifications Dimensions (W x H x D) 31 x 100 x 65 mm / 1.22 x 3.94 x 2.56 in (excl. fastening clip) Weight 250 g / 0.55 lb Power supply 12 ... 24 V DC or AC (terminal plug) Power consumption 1.7 W Operating temperature 0 ... 40 °C / 32 ... 104 °F Storage temperature 0 ... 40 °C / 32 ... 104 °F Electrical safety SELV Operating/storage hum. 20 ... 80% non-condensing Protection class IP20 Housing material metal Mounting on 35 mm DIN rail (EN 60715) Certification CE, UKCA Power interface Power supply on 2-pin terminal plug
V + : 12 .... 24 V DC or AC
V – : GND or 12 ... 24 V AC Ethernet port 1 x Ethernet 10/100 Mbit/s, RJ-45 User interface LEDs for Ethernet activity and device status
Reset button
web interface for configuration Read more
Specifications Dimensions (W x H x D) 31 x 100 x 65 mm / 1.22 x 3.94 x 2.56 in (excl. fastening clip) Weight 250 g / 0.55 lb Power supply 12 ... 24 V DC or AC (terminal plug) Power consumption 1.7 W Operating temperature 0 ... 40 °C / 32 ... 104 °F Storage temperature 0 ... 40 °C / 32 ... 104 °F Electrical safety SELV Operating/storage hum. 20 ... 80% non-condensing Protection class IP20 Housing material metal Mounting on 35 mm DIN rail (EN 60715) Certification CE, UKCA Power interface Power supply on 2-pin terminal plug
V + : 12 .... 24 V DC or AC
V – : GND or 12 ... 24 V AC Ethernet port 1 x Ethernet 10/100 Mbit/s, RJ-45 User interface LEDs for Ethernet activity and device status
Reset button
web interface for configuration Read more
The SYMPHOLIGHT Gateway is an MQTT to BACnet interface. It converts data from the lighting management system SYMPHOLIGHT into the building management system compliant format. Forward e.g. movement and brightness information and to process it smartly in the building management system.With the integrated web interface, you can configure the SYMPHOLIGHT Gateway using a web browser, save the configuration and call up statistics and documentation. That makes configuring the devices significantly easier, allowing them to be commissioned more quickly.
Specifications Dimensions (W x H x D) 31 x 100 x 65 mm / 1.22 x 3.94 x 2.56 in (excl. fastening clip) Weight 250 g / 0.55 lb Power supply 12 ... 24 V DC or AC (terminal plug) Power consumption 1.7 W Operating temperature 0 ... 40 °C / 32 ... 104 °F Storage temperature 0 ... 40 °C / 32 ... 104 °F Electrical safety SELV Operating/storage hum. 20 ... 80% non-condensing Protection class IP20 Housing material metal Mounting on 35 mm DIN rail (EN 60715) Certification CE, UKCA Power interface Power supply on 2-pin terminal plug
V + : 12 .... 24 V DC or AC
V – : GND or 12 ... 24 V AC Ethernet port 1 x Ethernet 10/100 Mbit/s, RJ-45 User interface LEDs for Ethernet activity and device status
Reset button
web interface for configuration Read more
Specifications Dimensions (W x H x D) 31 x 100 x 65 mm / 1.22 x 3.94 x 2.56 in (excl. fastening clip) Weight 250 g / 0.55 lb Power supply 12 ... 24 V DC or AC (terminal plug) Power consumption 1.7 W Operating temperature 0 ... 40 °C / 32 ... 104 °F Storage temperature 0 ... 40 °C / 32 ... 104 °F Electrical safety SELV Operating/storage hum. 20 ... 80% non-condensing Protection class IP20 Housing material metal Mounting on 35 mm DIN rail (EN 60715) Certification CE, UKCA Power interface Power supply on 2-pin terminal plug
V + : 12 .... 24 V DC or AC
V – : GND or 12 ... 24 V AC Ethernet port 1 x Ethernet 10/100 Mbit/s, RJ-45 User interface LEDs for Ethernet activity and device status
Reset button
web interface for configuration Read more
Specifications
| Type | Software |
| Brand | E:CUE |
