- e:cue Lightdrive+ (Black)
Article number:
41104

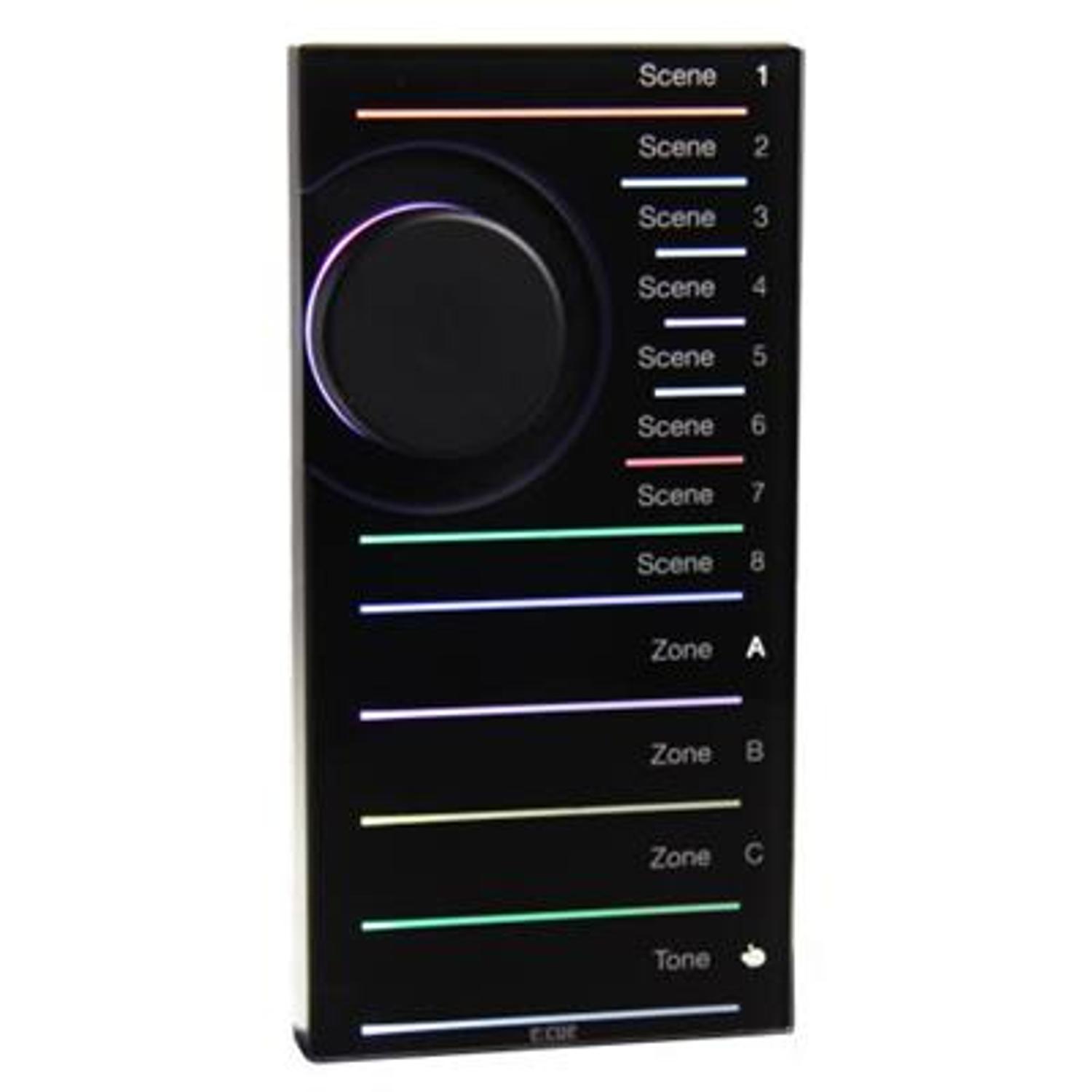

e:cue Lightdrive+ (Black)
LIGHTDRIVE+ fuses dynamic lighting control with a sophisticated design. The wall-mounted user terminal is able to output various scenes and effects in different zones which are set-up via an easy-to-use jog wheel. An additional software is not necessary. No matter what kind of location you have in mind: bars and restaurants, shops and malls, museums, reception areas ... For any purpose of any scale, be it small or mid-size, LIGHTDRIVE+ is the easy and straightforward solution for lighting control. The user terminal serves as a standalone DMX512 controller and comes with eight predefined scenes in each of the three zones that can be adjusted at any time without computer and software. The focal point of user interaction is the so called Jog Wheel. With this control knob, scenes, zones and effects, such as speed and brightness, can be adjusted in a blink of an eye. The user terminal itself shows a clear and minimalistic design with a high quality glass front panel. LIGHTDRIVE+ is compatible with all monochrome, dynamic white, RGB und RGBW LED fixtures.
Specifications Dimensions (W x H x D) 80 x 160 x 30 mm / 3.15 x 6.30 x 1.18 inch Weight 185 g / 0.41 lb Power supply PoE Standard IEEE 802.3af
or 12 ... 24 V DC Power consumption max. 4 W Operating temperature 0 ... 35 °C / 32 ... 95 °F Storage temperature -10 ... 70 °C / 14 ... 158 °F Operating/storage hum. 0 ... 80% non-condensing Protection class IP20 Materials ABS, glass Mounting standard 55 mm in-wall box
or vertical US type in-wall box Certification CE, ETL User interfaces 12 capacitive touch keys
1 jog wheel System interfaces 1 x Ethernet 100 Mbps on system plug
1 x USB 2.0 micro USB Low-side switches 2 x 24 V, max. 4 A
galvanically isolated Digital dry contacts 2 x digital dry contact
5 V DC contact supply DMX outputs 2 x DMX512 output Fixture types monochrome (1 channel)
dynamic White (2 channels)
RGB (3 channels)
RGBW (4 channels) Sensors proximity sensors Read more
Specifications Dimensions (W x H x D) 80 x 160 x 30 mm / 3.15 x 6.30 x 1.18 inch Weight 185 g / 0.41 lb Power supply PoE Standard IEEE 802.3af
or 12 ... 24 V DC Power consumption max. 4 W Operating temperature 0 ... 35 °C / 32 ... 95 °F Storage temperature -10 ... 70 °C / 14 ... 158 °F Operating/storage hum. 0 ... 80% non-condensing Protection class IP20 Materials ABS, glass Mounting standard 55 mm in-wall box
or vertical US type in-wall box Certification CE, ETL User interfaces 12 capacitive touch keys
1 jog wheel System interfaces 1 x Ethernet 100 Mbps on system plug
1 x USB 2.0 micro USB Low-side switches 2 x 24 V, max. 4 A
galvanically isolated Digital dry contacts 2 x digital dry contact
5 V DC contact supply DMX outputs 2 x DMX512 output Fixture types monochrome (1 channel)
dynamic White (2 channels)
RGB (3 channels)
RGBW (4 channels) Sensors proximity sensors Read more
LIGHTDRIVE+ fuses dynamic lighting control with a sophisticated design. The wall-mounted user terminal is able to output various scenes and effects in different zones which are set-up via an easy-to-use jog wheel. An additional software is not necessary. No matter what kind of location you have in mind: bars and restaurants, shops and malls, museums, reception areas ... For any purpose of any scale, be it small or mid-size, LIGHTDRIVE+ is the easy and straightforward solution for lighting control. The user terminal serves as a standalone DMX512 controller and comes with eight predefined scenes in each of the three zones that can be adjusted at any time without computer and software. The focal point of user interaction is the so called Jog Wheel. With this control knob, scenes, zones and effects, such as speed and brightness, can be adjusted in a blink of an eye. The user terminal itself shows a clear and minimalistic design with a high quality glass front panel. LIGHTDRIVE+ is compatible with all monochrome, dynamic white, RGB und RGBW LED fixtures.
Specifications Dimensions (W x H x D) 80 x 160 x 30 mm / 3.15 x 6.30 x 1.18 inch Weight 185 g / 0.41 lb Power supply PoE Standard IEEE 802.3af
or 12 ... 24 V DC Power consumption max. 4 W Operating temperature 0 ... 35 °C / 32 ... 95 °F Storage temperature -10 ... 70 °C / 14 ... 158 °F Operating/storage hum. 0 ... 80% non-condensing Protection class IP20 Materials ABS, glass Mounting standard 55 mm in-wall box
or vertical US type in-wall box Certification CE, ETL User interfaces 12 capacitive touch keys
1 jog wheel System interfaces 1 x Ethernet 100 Mbps on system plug
1 x USB 2.0 micro USB Low-side switches 2 x 24 V, max. 4 A
galvanically isolated Digital dry contacts 2 x digital dry contact
5 V DC contact supply DMX outputs 2 x DMX512 output Fixture types monochrome (1 channel)
dynamic White (2 channels)
RGB (3 channels)
RGBW (4 channels) Sensors proximity sensors Read more
Specifications Dimensions (W x H x D) 80 x 160 x 30 mm / 3.15 x 6.30 x 1.18 inch Weight 185 g / 0.41 lb Power supply PoE Standard IEEE 802.3af
or 12 ... 24 V DC Power consumption max. 4 W Operating temperature 0 ... 35 °C / 32 ... 95 °F Storage temperature -10 ... 70 °C / 14 ... 158 °F Operating/storage hum. 0 ... 80% non-condensing Protection class IP20 Materials ABS, glass Mounting standard 55 mm in-wall box
or vertical US type in-wall box Certification CE, ETL User interfaces 12 capacitive touch keys
1 jog wheel System interfaces 1 x Ethernet 100 Mbps on system plug
1 x USB 2.0 micro USB Low-side switches 2 x 24 V, max. 4 A
galvanically isolated Digital dry contacts 2 x digital dry contact
5 V DC contact supply DMX outputs 2 x DMX512 output Fixture types monochrome (1 channel)
dynamic White (2 channels)
RGB (3 channels)
RGBW (4 channels) Sensors proximity sensors Read more
Specifications
| Type | Operating Panels |
| Brand | E:CUE |
