Article number:
64154
e:cue LIGHTDRIVE+ WiFi

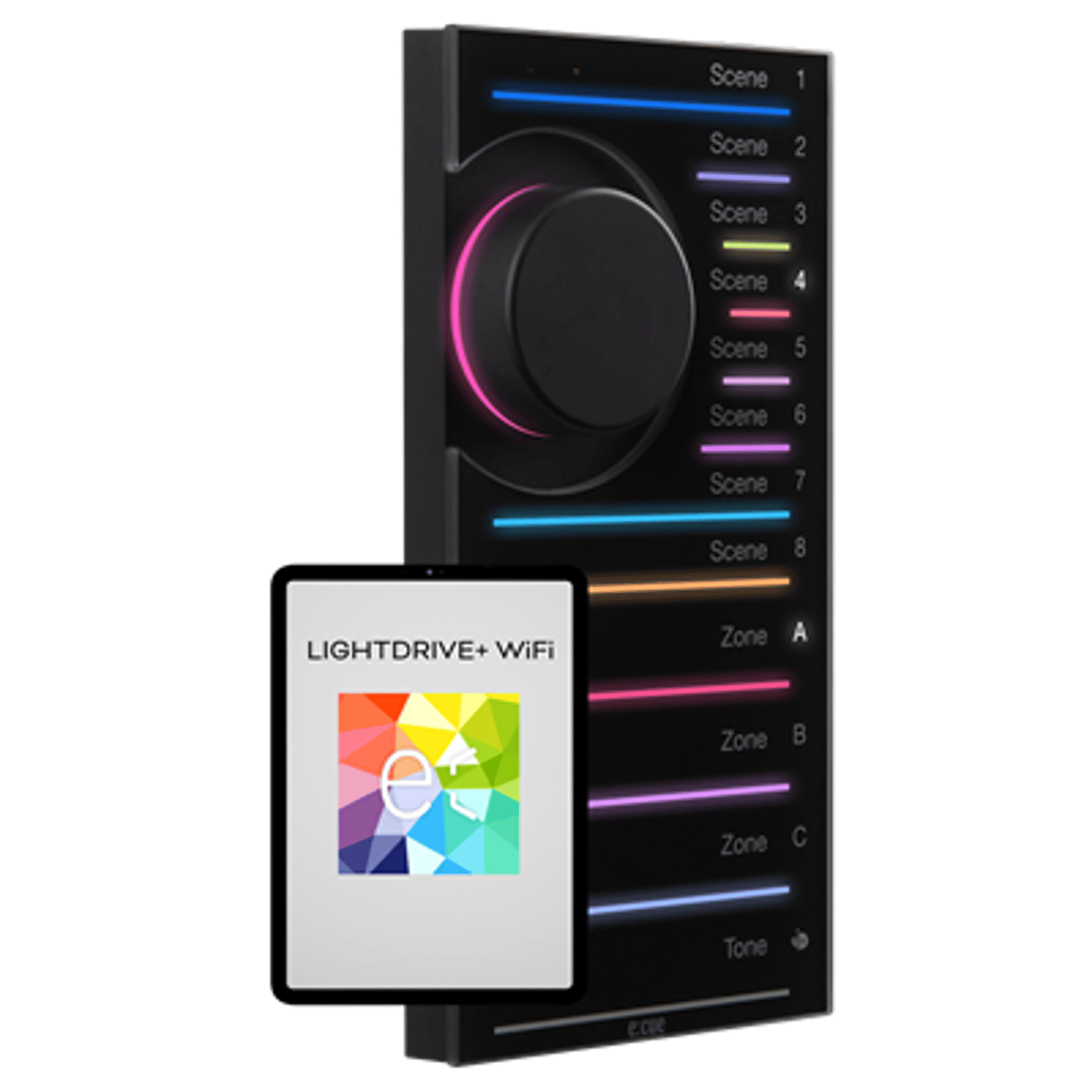

LIGHTDRIVE+ WiFi fuses dynamic lighting control with a sophisticated design. The wall-mounted user terminal is able to output various scenes and effects in different zones which are set-up via the LIGHTDRIVE+ app. No matter what kind of location you have in mind: bars and restaurants, shops and malls, museums, reception areas … For any purpose of any scale, be it small or mid-size, LIGHTDRIVE+ WiFi is the easy and straightforward solution for lighting control. The user terminal serves as a standalone DMX512 controller. The focal point of user interaction is the so called Jog Wheel. With this control knob, scenes, zones and effects, such as speed and brightness, can be adjusted in a blink of an eye. The user terminal itself shows a clear and minimalistic design with a high quality glass front panel. LIGHTDRIVE+ WiFi is compatible with all monochrome, dynamic white, RGB und RGBW LED fixtures.
Highlights
Elegant appearance Set-up via LIGHTDRIVE+ app For monochrome, dynamic white, RGB, and RGBW LED fixtures Two DMX outputs, divided into 3 zones 8 scenes in each of the 3 predefined zones Pre-defined FX effects Integrated scheduler for time trigger Integrated proximity sensor 2 low-side switches and 2 dry inputs for integration into 3rd party systems Elegant appearance Set-up via LIGHTDRIVE+ app For monochrome, dynamic white, RGB, and RGBW LED fixtures Two DMX outputs, divided into 3 zones 8 scenes in each of the 3 predefined zones Pre-defined FX effects Integrated scheduler for time trigger Integrated proximity sensor 2 low-side switches and 2 dry inputs for integration into 3rd party systems
Specifications:
Dimensions (W x H x D): 80 x 160 x 30 mm / 3.15 x 6.30 x 1.18 inchWeight: 188 g / 0.41 lbPower Supply: PoE Standard IEEE 802.3af, polarity-independent or 12 V DC SELVPower Consumption: typ. 4.5 W, max. 6 W (all LEDs 100% white), on device plugOperating Temperature: 0 … 35 °C / 32 … 95 °FStorage Temperature: 0 … 50 °C / 32 … 122 °FOperating/Storage Humidity: 0 … 80% RH, non-condensingProtection Class: IP20Installation: Indoor installation only, Intra building connections onlyHousing: PC/ABS, glassMounting: Wall mount housing, suitable for most international in-wall mounted boxesCertification: CE, ETL, FCC, UKCAReal Time Clock: With capacitor backup, holds time for ~1hUser Interfaces (UI): 12 x capacitive touch key, 1 x jog wheel with switchSystem Interfaces: 3 x DIP switch, 1 x Ethernet 100 Mbps on device plug (max. cable length: 65 m, for synchronization of multiple devices only), 1 x USB 2.0 micro USB-B (for update only)DMX Outputs: 2 x DMX512 output on device plugFixture Types: Monochrome (1 channel), Dynamic White (2 channels), RGB (3 channels), RGBW (4 channels)Low-side Switches: 2 x 24 V DC, max. 3 A, ON resistance 50 mO, normally open, galvanically isolated, overload protected, on device plugDigital Dry Contacts: 2 x inputs, 5 V DC contact supply, on device plug, Input high threshold voltage: 2.5 V, Input low threshold voltage: 1.2 V, Typ. input threshold voltage: 1.5 V, Input voltage max.: 15 VDigital Inputs Supply: For dry contacts, Use 5 V DC from device (pin 7), max. 15 mA, Typ. current when sourcing all 2 ports: 12 mADevice Plugs: Push-in spring connection plug, Stripping length: 6mm, Major diameter of isolated cable max. 2 mm, Cable cross-section: solid 0.14 … 0.5 sqmm, flexible 0.2 … 0.5 sqmmWiFi: RF frequencies: 2.4 … 2.473 GHz. IEEE 802.11 b/g/nSensors: Proximity sensors for UI activation
Read more
Highlights
Elegant appearance Set-up via LIGHTDRIVE+ app For monochrome, dynamic white, RGB, and RGBW LED fixtures Two DMX outputs, divided into 3 zones 8 scenes in each of the 3 predefined zones Pre-defined FX effects Integrated scheduler for time trigger Integrated proximity sensor 2 low-side switches and 2 dry inputs for integration into 3rd party systems Elegant appearance Set-up via LIGHTDRIVE+ app For monochrome, dynamic white, RGB, and RGBW LED fixtures Two DMX outputs, divided into 3 zones 8 scenes in each of the 3 predefined zones Pre-defined FX effects Integrated scheduler for time trigger Integrated proximity sensor 2 low-side switches and 2 dry inputs for integration into 3rd party systems
Specifications:
Dimensions (W x H x D): 80 x 160 x 30 mm / 3.15 x 6.30 x 1.18 inchWeight: 188 g / 0.41 lbPower Supply: PoE Standard IEEE 802.3af, polarity-independent or 12 V DC SELVPower Consumption: typ. 4.5 W, max. 6 W (all LEDs 100% white), on device plugOperating Temperature: 0 … 35 °C / 32 … 95 °FStorage Temperature: 0 … 50 °C / 32 … 122 °FOperating/Storage Humidity: 0 … 80% RH, non-condensingProtection Class: IP20Installation: Indoor installation only, Intra building connections onlyHousing: PC/ABS, glassMounting: Wall mount housing, suitable for most international in-wall mounted boxesCertification: CE, ETL, FCC, UKCAReal Time Clock: With capacitor backup, holds time for ~1hUser Interfaces (UI): 12 x capacitive touch key, 1 x jog wheel with switchSystem Interfaces: 3 x DIP switch, 1 x Ethernet 100 Mbps on device plug (max. cable length: 65 m, for synchronization of multiple devices only), 1 x USB 2.0 micro USB-B (for update only)DMX Outputs: 2 x DMX512 output on device plugFixture Types: Monochrome (1 channel), Dynamic White (2 channels), RGB (3 channels), RGBW (4 channels)Low-side Switches: 2 x 24 V DC, max. 3 A, ON resistance 50 mO, normally open, galvanically isolated, overload protected, on device plugDigital Dry Contacts: 2 x inputs, 5 V DC contact supply, on device plug, Input high threshold voltage: 2.5 V, Input low threshold voltage: 1.2 V, Typ. input threshold voltage: 1.5 V, Input voltage max.: 15 VDigital Inputs Supply: For dry contacts, Use 5 V DC from device (pin 7), max. 15 mA, Typ. current when sourcing all 2 ports: 12 mADevice Plugs: Push-in spring connection plug, Stripping length: 6mm, Major diameter of isolated cable max. 2 mm, Cable cross-section: solid 0.14 … 0.5 sqmm, flexible 0.2 … 0.5 sqmmWiFi: RF frequencies: 2.4 … 2.473 GHz. IEEE 802.11 b/g/nSensors: Proximity sensors for UI activation
Read more
LIGHTDRIVE+ WiFi fuses dynamic lighting control with a sophisticated design. The wall-mounted user terminal is able to output various scenes and effects in different zones which are set-up via the LIGHTDRIVE+ app. No matter what kind of location you have in mind: bars and restaurants, shops and malls, museums, reception areas … For any purpose of any scale, be it small or mid-size, LIGHTDRIVE+ WiFi is the easy and straightforward solution for lighting control. The user terminal serves as a standalone DMX512 controller. The focal point of user interaction is the so called Jog Wheel. With this control knob, scenes, zones and effects, such as speed and brightness, can be adjusted in a blink of an eye. The user terminal itself shows a clear and minimalistic design with a high quality glass front panel. LIGHTDRIVE+ WiFi is compatible with all monochrome, dynamic white, RGB und RGBW LED fixtures.
Highlights
Elegant appearance Set-up via LIGHTDRIVE+ app For monochrome, dynamic white, RGB, and RGBW LED fixtures Two DMX outputs, divided into 3 zones 8 scenes in each of the 3 predefined zones Pre-defined FX effects Integrated scheduler for time trigger Integrated proximity sensor 2 low-side switches and 2 dry inputs for integration into 3rd party systems Elegant appearance Set-up via LIGHTDRIVE+ app For monochrome, dynamic white, RGB, and RGBW LED fixtures Two DMX outputs, divided into 3 zones 8 scenes in each of the 3 predefined zones Pre-defined FX effects Integrated scheduler for time trigger Integrated proximity sensor 2 low-side switches and 2 dry inputs for integration into 3rd party systems
Specifications:
Dimensions (W x H x D): 80 x 160 x 30 mm / 3.15 x 6.30 x 1.18 inchWeight: 188 g / 0.41 lbPower Supply: PoE Standard IEEE 802.3af, polarity-independent or 12 V DC SELVPower Consumption: typ. 4.5 W, max. 6 W (all LEDs 100% white), on device plugOperating Temperature: 0 … 35 °C / 32 … 95 °FStorage Temperature: 0 … 50 °C / 32 … 122 °FOperating/Storage Humidity: 0 … 80% RH, non-condensingProtection Class: IP20Installation: Indoor installation only, Intra building connections onlyHousing: PC/ABS, glassMounting: Wall mount housing, suitable for most international in-wall mounted boxesCertification: CE, ETL, FCC, UKCAReal Time Clock: With capacitor backup, holds time for ~1hUser Interfaces (UI): 12 x capacitive touch key, 1 x jog wheel with switchSystem Interfaces: 3 x DIP switch, 1 x Ethernet 100 Mbps on device plug (max. cable length: 65 m, for synchronization of multiple devices only), 1 x USB 2.0 micro USB-B (for update only)DMX Outputs: 2 x DMX512 output on device plugFixture Types: Monochrome (1 channel), Dynamic White (2 channels), RGB (3 channels), RGBW (4 channels)Low-side Switches: 2 x 24 V DC, max. 3 A, ON resistance 50 mO, normally open, galvanically isolated, overload protected, on device plugDigital Dry Contacts: 2 x inputs, 5 V DC contact supply, on device plug, Input high threshold voltage: 2.5 V, Input low threshold voltage: 1.2 V, Typ. input threshold voltage: 1.5 V, Input voltage max.: 15 VDigital Inputs Supply: For dry contacts, Use 5 V DC from device (pin 7), max. 15 mA, Typ. current when sourcing all 2 ports: 12 mADevice Plugs: Push-in spring connection plug, Stripping length: 6mm, Major diameter of isolated cable max. 2 mm, Cable cross-section: solid 0.14 … 0.5 sqmm, flexible 0.2 … 0.5 sqmmWiFi: RF frequencies: 2.4 … 2.473 GHz. IEEE 802.11 b/g/nSensors: Proximity sensors for UI activation
Read more
Highlights
Elegant appearance Set-up via LIGHTDRIVE+ app For monochrome, dynamic white, RGB, and RGBW LED fixtures Two DMX outputs, divided into 3 zones 8 scenes in each of the 3 predefined zones Pre-defined FX effects Integrated scheduler for time trigger Integrated proximity sensor 2 low-side switches and 2 dry inputs for integration into 3rd party systems Elegant appearance Set-up via LIGHTDRIVE+ app For monochrome, dynamic white, RGB, and RGBW LED fixtures Two DMX outputs, divided into 3 zones 8 scenes in each of the 3 predefined zones Pre-defined FX effects Integrated scheduler for time trigger Integrated proximity sensor 2 low-side switches and 2 dry inputs for integration into 3rd party systems
Specifications:
Dimensions (W x H x D): 80 x 160 x 30 mm / 3.15 x 6.30 x 1.18 inchWeight: 188 g / 0.41 lbPower Supply: PoE Standard IEEE 802.3af, polarity-independent or 12 V DC SELVPower Consumption: typ. 4.5 W, max. 6 W (all LEDs 100% white), on device plugOperating Temperature: 0 … 35 °C / 32 … 95 °FStorage Temperature: 0 … 50 °C / 32 … 122 °FOperating/Storage Humidity: 0 … 80% RH, non-condensingProtection Class: IP20Installation: Indoor installation only, Intra building connections onlyHousing: PC/ABS, glassMounting: Wall mount housing, suitable for most international in-wall mounted boxesCertification: CE, ETL, FCC, UKCAReal Time Clock: With capacitor backup, holds time for ~1hUser Interfaces (UI): 12 x capacitive touch key, 1 x jog wheel with switchSystem Interfaces: 3 x DIP switch, 1 x Ethernet 100 Mbps on device plug (max. cable length: 65 m, for synchronization of multiple devices only), 1 x USB 2.0 micro USB-B (for update only)DMX Outputs: 2 x DMX512 output on device plugFixture Types: Monochrome (1 channel), Dynamic White (2 channels), RGB (3 channels), RGBW (4 channels)Low-side Switches: 2 x 24 V DC, max. 3 A, ON resistance 50 mO, normally open, galvanically isolated, overload protected, on device plugDigital Dry Contacts: 2 x inputs, 5 V DC contact supply, on device plug, Input high threshold voltage: 2.5 V, Input low threshold voltage: 1.2 V, Typ. input threshold voltage: 1.5 V, Input voltage max.: 15 VDigital Inputs Supply: For dry contacts, Use 5 V DC from device (pin 7), max. 15 mA, Typ. current when sourcing all 2 ports: 12 mADevice Plugs: Push-in spring connection plug, Stripping length: 6mm, Major diameter of isolated cable max. 2 mm, Cable cross-section: solid 0.14 … 0.5 sqmm, flexible 0.2 … 0.5 sqmmWiFi: RF frequencies: 2.4 … 2.473 GHz. IEEE 802.11 b/g/nSensors: Proximity sensors for UI activation
Read more
Specifications
| Type | Operating Panels |
| Brand | E:CUE |
